Overview
- Immersive 360W (RMS) output, 2.1 ch surround sound with wireless subwoofers
- Support Digital Optical-in and HDMI eARC / ARC output
- Support LPCM (Max. 7.1ch)
- Support audio formats Dolby Atmos and DTS:X / DTS Virtual : X, enables life-like 3D surround sound
- STANDARD / MUSIC / CINEMA / VOICE / NEWS mode
- Clear-Mode Dialogue comes to the rescue by enhancing the clarity of speech in the sound mix
- "Bass Boost" function enables you to adjust the bass level
- Bluetooth streaming to set up your home threater
- Enjoy wireless music anytime with Panasonic Music Streaming App
- The stylish one-bar design is simplified to the greatest possible extent to match TVs
- Easy sound bar control with remote controller or back corner switch on sound bar itself
- Wall-Mountable

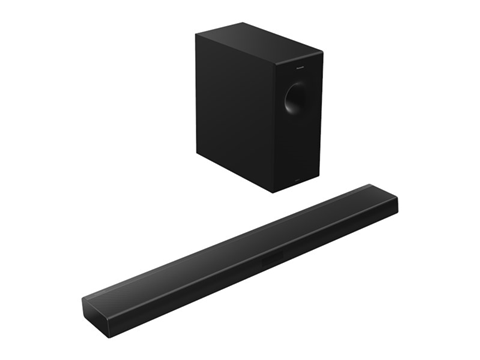

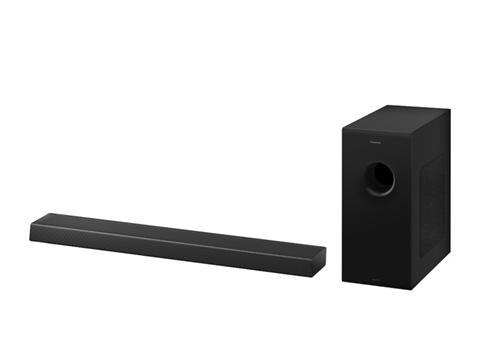

Powerful and clear bass sound
The HTB600 uses a wireless subwoofer with total output of 200W. The port inside the woofer is aerodynamically shaped for smooth air flow, reducing vibrations while delivering a stronger, clearer bass sound.
Powerful sound from compact speaker box
The front employs a full range 4.5x10cm speaker unit for a total output of 160W including the built-in subwoofers. As our first soundbar with a neodymium magnet, it achieves powerful sound in a miniaturised unit
*Product image for illustration purposes only. Actual product may vary.
An immersive cinematic experience
With support for state-of-the-art audio formats Dolby Atmos and DTS:X, the sound pours in from all directions. Powerful, dynamic sound travels in 3D space to bring you inside an immersive cinematic experience.
*Dolby, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories.
Wall mountable design
The design harmonises the TV with the wall by minimising the gap when wall-mounting the soundbar.
A conclusion of 7°
The front of the unit has a 7° slope and the speakers face upwards. This enables listeners to feel the sound directly whether the unit is on the cabinet or mounted on the wall.
Stream your music wirelessly
The HTB600 supports Bluetooth®, so you can listen to music on your smart devices wirelessly. Playback and volume control are also as simple as pressing a button, which easily turns it into a stereo speaker.
Metal Net
Metal net is designed with attention to detail of mesh size and spacing. Net is arranged more precisely to produce a sense of spacious sound.

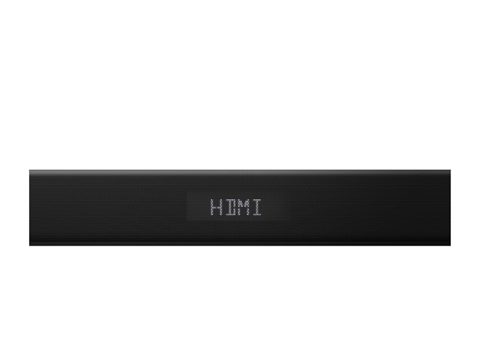

LED Display
The unit features an easily readable LED display. View playback time and connection mode at a glance.

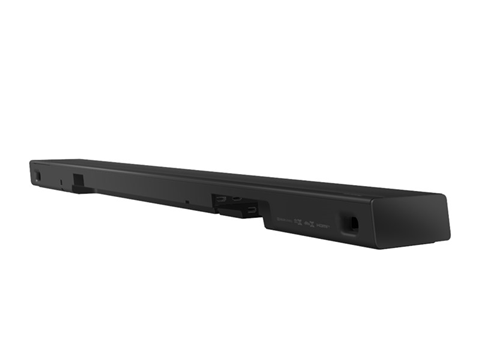

Back Corner Switch
To give the sound bar itself a thoroughly simplified, minimalist look, various buttons such as power and playback have been consolidated in the back corner.
Specifications
Home Theatre System Soundbar | |||
|---|---|---|---|
| Audio | |||
| General Specifications | |||
| Sound Bar | |||
| Terminal | HDMI Out | x 1 (eARC) | |
| HDMI In | x 1 | ||
| USB | x 1 (For Service Use and Customer Software Update) | ||
| Audio In (Optical) | x 1 | ||
| Sound Quality | Output | RMS Output Power (Amplifier) Total RMS Stereo Mode Power: 360W Front Speaker (Left / Right): 80W + 80W (1K kHz, THD 10%, 4Ω) Subwoofer: 200W (100 Hz, THD 10%, 3Ω) Front Speaker (Left / Right) (Speaker System) Type: 1 way , 1 speaker system (Bass reflex) Speaker Unit (Speaker System) Full Range: 4.5 x 10 cm Cone Type x 2 version: Bass Reflex Port Subwoofer (Speaker System) Type: 1 way, 1 speaker system (Bass reflex) Speaker Unit: Woofer: 16 cm Cone Type x 1 Bass Expand: Bass Reflex Port Wireless: Yes | |
| Output Channel | 2.1 | ||
| Dolby Digital | Support | ||
| DTS Digital Surround | Support | ||
| Clear-mode Dialog | Support | ||
| H.Bass | • | ||
| Smart Networking | Bluetooth® Wireless Technology | Bluetooth® Ver 5.0 | |
| Dimensions (W x D x H) | Main Unit: 962 x 120 x 56 mm Main Unit with legs: 962 x 120 x 63 mm Wall mount layout: 962 x 132 x 66 mm Subwoofer : 191 x 385 x 413 mm | ||
| Weight | Main Unit: 3.3 kg Subwoofer: 8.4 kg | ||
Home Theatre System Soundbar | |||
|---|---|---|---|
| Audio | |||
| General Specifications | |||
| Sound Bar | |||
| Terminal | HDMI Out | x 1 (eARC) | |
| HDMI In | x 1 | ||
| USB | x 1 (For Service Use and Customer Software Update) | ||
| Audio In (Optical) | x 1 | ||
| Sound Quality | Output | RMS Output Power (Amplifier) Total RMS Stereo Mode Power: 360W Front Speaker (Left / Right): 80W + 80W (1K kHz, THD 10%, 4Ω) Subwoofer: 200W (100 Hz, THD 10%, 3Ω) Front Speaker (Left / Right) (Speaker System) Type: 1 way , 1 speaker system (Bass reflex) Speaker Unit (Speaker System) Full Range: 4.5 x 10 cm Cone Type x 2 version: Bass Reflex Port Subwoofer (Speaker System) Type: 1 way, 1 speaker system (Bass reflex) Speaker Unit: Woofer: 16 cm Cone Type x 1 Bass Expand: Bass Reflex Port Wireless: Yes | |
| Output Channel | 2.1 | ||
| Dolby Digital | Support | ||
| DTS Digital Surround | Support | ||
| Clear-mode Dialog | Support | ||
| H.Bass | • | ||
| Smart Networking | Bluetooth® Wireless Technology | Bluetooth® Ver 5.0 | |
| Dimensions (W x D x H) | Main Unit: 962 x 120 x 56 mm Main Unit with legs: 962 x 120 x 63 mm Wall mount layout: 962 x 132 x 66 mm Subwoofer : 191 x 385 x 413 mm | ||
| Weight | Main Unit: 3.3 kg Subwoofer: 8.4 kg | ||
