Overview
- Enables high-grade stereo surround sound recording
- Supports 96 kHz/24 hi-res sound recording
- Well suited to lip-sync recording

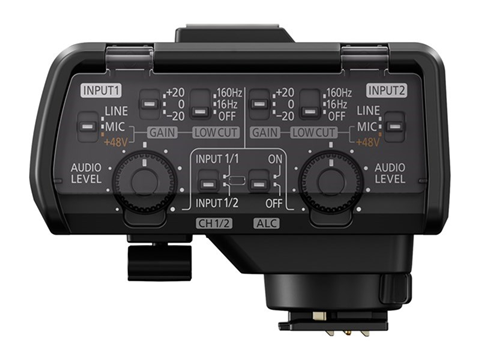

- Physical switch and dails for easy setup and checking
- DC power supplied via a shoe connector
- Suitable for LUMIX S series and G series camera

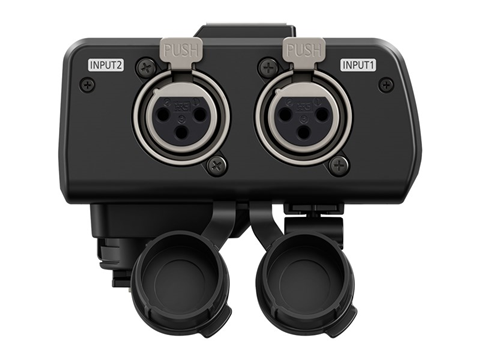

| Input Terminals | Input 1, Input 2 XLR 3-pin (female) |
| Standard Input Level | Line: 0 dBu Mic, +48V: -40 dBu (0 dBu = 0.775 Vrms) |
| Standard Recording Level | -12 dBFS (on standard input) |
| Frequency Response | 20 Hz - 20kHz, +0/-1 dB (Fs = 48 kHz) 20 Hz - 40kHz, +0/-1 dB (Fs = 96 kHz) |
| Gain Switch | +20, 0, -20 dB |
| Low Cut Switch | 160 Hz, 16 Hz, Off (cutoff frequency) |
| Dimensions (W x H x D) | Approx. 64.4 x 60.9 x 81.8 mm / 2.535 x 2.397 x 3.220 inch (excluding the projecting parts) |
| Weight | Approx. 173 g / 0.381 lb |
| Operating Temperature | 0 - 40 °C / 32 - 104 °F |
Specifications
XLR Microphone Adaptor | |
|---|---|
| For specification, please refer to Product Catalogue in "Support" section. | |
XLR Microphone Adaptor | |
|---|---|
| For specification, please refer to Product Catalogue in "Support" section. | |
