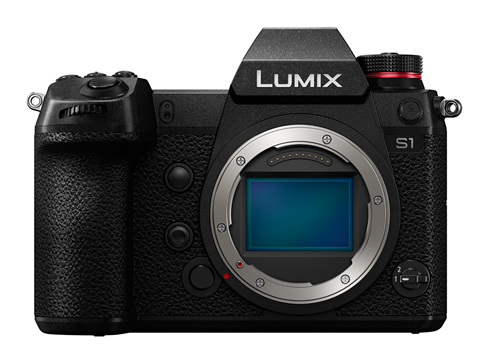

LUMIX S Full Frame Mirrorless Camera
DC-S1
Suggested Retail Price HK$19,900
Body Only
All existing and new purchasers of LUMIX S1 camera can enjoy special offer $790 (Value: $1,590) to get the softwar upgrade key (DMW-SFU2), by showing the receipt and warranty card in following locations:
1. Tsimshatsui (iSquare) Ninki Denki
2. Causeway Bay - Sogo Showroom
3. TST East - New East Ocean Centre Showroom
*Please contact the above shops for registration before redemption
Overview
Feature
- 24.2MP Ultra Sensitive Full-frame CMOS Sensor without low pass filter
- 96MP RAW recording in High Resolution Mode
- Newly HLG Photo Mode enable 4K-res photo recording in HSP format. Showing compressed brightness and expanding dynamic range by conneting to HDR-compatible device
- 6 stops*1 5-axis Dual I.S.2 image shift type stabilizer
- Support -6 EV low light AF, clear focusing even for dark scenes
- 0.08 sec fast and accurate AF*2
- Support 4K60p (4:2:2 10-bit) video recording and HDMI output
- 4K PHOTO function allows you to play, pause, and extract 8-megapixel photos from 4K/60p Ultra HD video
- 6K PHOTO function allows you to play, pause, and extract 18-megapixel photos from 6K/30p Ultra HD video
- Highest Resolution 5,760k-dot OLED Real View Finder with 0.005 sec Minimum Time Lag
- 2100k dots touch control triaxial tilt LCD monitor
- 3.5 mm headphone socket, support real-time audio monitoring
- Dust and splash resistant, operating temperature down to -10℃*3
- SD and XQD double card slot*4
*1 Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]
*2 11EV, at wide-end with S-R24105 (CIPA) in LVF120 fps setting
*3 Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water
*4 Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards
Download Bundled Software:
1. LUMIX Tether
Ultimate Hybrid. Fuel the Passion for Stills and Video
A new 24.2-megapixel CMOS sensor that delivers incredibly realistic detail. 4K video recording with no time limit, meeting professional needs.* Going beyond the boundaries of still and video, this full-frame mirrorless camera inspires passionate image creation.
* Maximum 29 minutes 59 seconds in 4K 60p/50p until the SD Memory Card becomes full or the battery runs out. When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
6-stop 5-axis Dual I.S. 2
The LUMIX S1R/S1 integrates the Body I.S. (Image Stabilizer) with 5.5-stop compensation power.*1 Combining the Body I.S. (5-axis) and the O.I.S. (Optical Image Stabilizer, 2-axis) in the LUMIX S Series lenses, the 5-axis Dual I.S. 2 compensates for larger movements that were conventionally uncontrollable.*2 It is highly beneficial for telephoto shots and adverse situations, such as in low light or with one-handed shooting with a 6-stop slower shutter speed.*3
*1 Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.)
*2 5-Axis Dual I.S.2 can be used with the lens S-R24105 and S-R70200 as of February 1, 2019.
*3 Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=200mm when S-R70200 is used.)
96MP High Resolution Mode
In this mode, eight consecutive images are automatically shot while shifting the sensor using the Body I.S. (Image Stabilizer) mechanism. Then, the new Venus Engine, which boasts high-speed signal processing, synthesizes the images into a 96-megapixel equivalent (12,000 x 8,000-pixel) RAW file. This mode is excellent for shooting ultra-detailed nature shots with a tripod, as well as other works of art that combine grandeur with precision. MODE 1 produces shots of moving subjects that appear to be fluid and in motion, while MODE 2 corrects for such motion to produce a static image.
4K 60p/50p Smooth Video Recording
4K 60p/50p video recording is available in the LUMIX S1R/S1. Furthermore, the LUMIX S1 is capable of recording a full-pixel readout of signals and a crop factor of 1.0x in 30p/25p to save tuly beautiful footage with no time limited* for both FULL-HD and 4K 30p/25p, as well as HDR video recording. The LUMIX S1 will comply with 4:2:2 10-bit 4K 30p/25p internal video recording, 4K 60p/50p HDMI output and V-Log with a software upgrade key (to be sold separately).*
* Maximum recording time of 60 minutes in 4K 60p until memory card becomes full or the battery runs out
* 50p and 25p recording only for 50Hz area
High Dynamic Range Still Photo – HLG Photo Mode
HLG Photo mode supports a new style of photographic enjoyment on the screen of HLG-compliant devices - one in which rendering of bright light is especially impressive. HPS files, which compress a high degree of brightness, are displayed as images with breathtaking reproduction of dynamic range and extremely fine gradations of light and dark.
Advanced AF and AI Technology
Panasonic has achieved a high-speed AF with its advanced control technology over lens, sensor and imaging engine. The lens and sensor communicate at a maximum 480fps. Combining the Contrast AF with DFD technology, the LUMIX S1 realizes an ultra high-speed, high precision AF of approximately 0.08 sec.*
*11EV at wide-end with S-R24105[CIPA] in LVF120 fps setting.
Adoption of AI Technology
The LUMIX S1/S1R also incorporates Advanced AI technology that detect specific subjects - human and fast-moving animals. The LUMIX S1/S1R keeps tracking these subjects even when they turn their back to the camera.
Low-light AF in -6EV Condition
Low-light AF in -6EV Condition As a camera that exels in low-light shooting, the LUMIX S1R/S1 boasts -6EV* luminance detection performanace with Low Light AF thanks to the higher sensitivity and optimzed tuning of the sensor.
*At ISO 100, F1.4 AFS. 100% contrast target.
5,760k dots Live View Finder
The Live View Finder baosts the world's highest 5,760k-dots resolution.* Adoption of a high-speed, high precision OLED for the LVF achieves smooth display at 60fps/120fps and high-speed response with minimum time lag of less than 0.005 sec.
*As a Full-frame Digital Single Lens Mirrorless Camera, as of February 1, 2019.
Double Memory Card Slot
The Double Memory Card slot is compatible with SD Memory Cards (UHS-II) and XQD Memory Cards for high-speed, high capacity, continuous data recording.* It will also be compatible with Cfexpress in the near future.
* XQD is a trademark of Sony Corporation.
Rugged Design
To be tough enough to withstand heavy field use, the main structure is composed of a magnesium alloy full die-cast front/rear frame. Robust construction and a sealing for every joint, dial, and button make the LUMIX S1R/S1 not only dust resistant and splash resistant but also operates down to -10 degrees Centigrade.* The shutter unit is also durable for approximately 400,000 cycles.
* Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
Unlimited Possibilities with L-Mount
Panasonic, Leica Camera and Sigma are set to offer a user-friendly solution that will allow photographer to "mix and match" any of the three manufactures' APS-C and full-frame camera with any lens from each other's product portfolios.The L-Mount thereby opens up an almost limitless spectrum of new creative possibilities.
LUMIX S PRO Certified by LEICA 50mm F1.4
LUMIX S PRO Certified by LEICA 70-200mm F4 O.I.S.
LUMIX S 24-105mm F4 Macro O.I.S.
* The L-Mount Logo mark is a trademark or registered trademark of Leica Camera AG.
Specifications
LUMIX S Full Frame Mirrorless Camera | |
|---|---|
| Digital Camera | |
| General Specifications | |
| Mount | L mount |
| Camera Effective Pixels | 24.20 megapixels |
| Image Sensor | 35mm full-frame (35.6mm x 23.8mm) CMOS sensor |
| Image stabilization | Image sensor shift type (5-axis / 5.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.] Dual I.S.2 (5-axis / 6.0-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-R70200 is used.] |
| Focus mode | AFS (Single) / AFC (Continuous) / MF |
| AF mode | Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3 (Full area touch is available) (Scalable AF frame size and flexible AF position) |
| Metering mode | Multiple / Center Weighted / Spot / Highlight Weighted |
| ISO Sensitivity | Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO |
| Exposure mode | Program AE, Aperture Priority AE, Shutter Priority AE, Manual |
| Exposure Compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
| Shutter Speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25 |
| Recording Image Size (Max Pixels) | [4:3] 5328x4000 [3:2] 6000x4000 [16:9] 6000x3368 [1:1] 4000x4000 |
| Recording file format | Photo: 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch)) 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch)) Extracted still images: JPEG (DCF, Exif 2.31) Video: MP4: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch)), MP4 HEVC: H.265/HEVC (Audio format: AAC (2ch)) AVCHD Progressive (Audio format: Dolby Audio (2ch)), AVCHD (Audio format: Dolby Audio (2ch)) |
| Image Quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard |
| Creative Control Mode | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine* *For photos only. |
| Scene Mode | Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / Like709 / Standard (HLG) / Monochrome (HLG) / Like2100 / My Photo Style 1-10 |
| Burst speed | Mechanical shutter / Electronic front curtain shutter: AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) Electronic shutter: AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) 6K PHOTO: 30 frames/sec 4K PHOTO: 60 frames/sec, 30 frames/sec |
| Viewfinder | OLED Live View Finder (Approx. 5,760k dots) |
| LCD Monitor | 3.2" Triaxial tilt TFT LCD monitor with static touch control (approx 2100K dots) |
| Battery life (approx.) | With S-R24105 Lens When using XQD memory card: Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105 *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. When using SD memory card: Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. |
| Memory | Slot 1: XQD Memory Card Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. |
| Dimensions (approx.) (W x H x D) | Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions) |
| Weight (Body only) Approx. | Approx. 899g |
| Weight (includes SD Card and Battery) Approx. | Approx. 1,021g (XQD Memory Card x 1, Battery, Body) Approx. 1,017g (SD Memory Card x 1, Battery, Body) |
| Standard Accessories | Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead, USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder |
| Flash | |
| Synchronization | Less than 1/320 second *Only when set to M mode or S |
| External microphone terminal | φ3.5mm for external microphone |
| Movie format | |
| Movie format | MP4: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch)), MP4 HEVC: H.265/HEVC (Audio format: AAC (2ch)) AVCHD Progressive (Audio format: Dolby Audio (2ch)), AVCHD (Audio format: Dolby Audio (2ch)) |
| 4K Video | 4K 60p/30/25p/24p (4:2:0 8 bit) |
| High Speed Video | [4K] 3840x2160: 29.97p (Sensor output is 60fps) 23.98p (Sensor output is 48fps) [FHD] 1920x1080: 29.97p (Sensor output is 180fps / 150fps) |
| AVCHD Progressive (16:9) | [FHD] 1920x1080: 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) 50.00i, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 25.00fps) 50.00i, 17Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 50.00fps) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) |
| MPEG 4 | [4K] 3840x2160: 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM) 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM) 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (AAC) 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (AAC) [FHD] 1920x1080: 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (AAC) 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (AAC) |
| Phone Specification | |
| Processor | Venus Engine |
| Wi-fi | Yes |
| Bluebooth | Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) |
