LUMIX S Full Frame Mirrorless Camera

DC-S5K
Product | Accessories

Suggested Retail Price HK$19,900

Single Lens Kit with LUMIX S 20-60mm F3.5 - 5.6 lens

(Model no.: S-R2060)

Overview

Feature

24.2MP Ultra-Sensitive Full-frame CMOS Sensor without low pass filter
Support Dual Native ISO with extended ISO up to 204,800
96MP RAW/JPG recording in High Resolution Mode, lower shutter speed of 8 sec. can be set.
HLG Photo Mode enable 4K-res photo recording in HSP format. Showing compressed brightness and expanding dynamic range by connecting to HDR-compatible device
6.5 stops^*1 5-axis Dual I.S.2 image shift type stabilizer
Newly Live View Composite function enables beautiful night scenery with illumination by multi-layering images
Support -6 EV low light AF, clear focusing even for dark scenes
0.08 sec fast and accurate AF^*2
Human (Head/Body/Face/Eye) Recognition and Animal Recognition AF
Newly added [AF-ON: Near / Far Shift] AF function
Support 4K60p (4:2:0 10-bit) APS-C video recording or 4K30p (4:2:2 10-bit) full frame video recording
4:3 Anamorphic Mode enables APS-C 4K 50.00p/29.97p/25.00p/23.98p video recording
No limitation of video recording time in 4K 8-bit recording
Support HDR/ 4K 60p Time Lapse
Switching has become even more convenient with Switch NTSC / PAL function
Offering a very wide color spectrum with 14+ stops of V-Log and V-Gamut compatible with cinema VariCam look
4K PHOTO function allows you to play, pause, and extract 8-megapixel photos from 4K/60p Ultra HD video
6K PHOTO function allows you to play, pause, and extract 18-megapixel photos from 6K/30p Ultra HD video
2,360k-dot OLED Real View Finder with 0.005 sec Minimum Time Lag

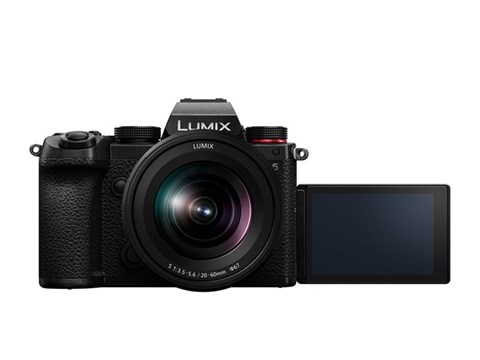

3-inch 1,840k dots high brightness free-angle touch monitor
3.5 mm mic / headphone socket, support real-time audio monitoring
Dust and splash resistant, operating temperature down to -10℃^*4
Compact and lightweight design of camera body in only 714g
Double SD card slot

*1 Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

*2 11EV, at wide-end with S-R24105 (CIPA) in LVF120 fps setting.

*3 Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water

Download Bundled Software:

1. LUMIX Tether

2. SILKYPIX Developer Studio SE

Moving Images Forward

The LUMIX S5 provides exceptional photo and video performance to the quality conscious content creator. Its flip-out screen is combined with a smaller, lighter body that has been designed with urban adventures in mind.

Moving Images Forward

Full Frame 24.2MP CMOS Sensor with Dual Native ISO Technology

The CMOS Sensor has been optimised to deliver exceptional image quality for both stills and videos, while the Dual Native ISO provides a greater level of flexibility when shooting in lower light conditions without the usual increase in visible noise when shooting video.

Full Frame 24.2MP CMOS Sensor with Dual Native ISO Technology

Versatile Recording Modes

The video versatility of the S5 was carefully considered to ensure compatibility with the existing S-Series line-up. 4K 60p/50p and Full HD up to 180fps is available for shooting fast motion, while 4K 30p/25p 4:2:2 10-bit video can be output via HDMI for maximum post-production versatility.

Versatile Recording Modes

4:2:2 10-bit Internal Recording / HDMI Output

Record up to 4K/30p 4:2:2 10bit interbally with the Dual SDXC memory card slots, or utilise HDMI Output to record video at a maximum quality of 4K/60p 4:2:2 10-bit.

4:2:2 10-bit Internal Recording / HDMI Output

Record up to 4K/30p 4:2:2 10bit interbally with the Dual SDXC memory card slots, or utilise HDMI Output to record video at a maximum quality of 4K/60p 4:2:2 10-bit.

V-log / V-Gamut with 14+
Stops of Dynamic Range

The S5 features V-Log / V-Gamut with a wider 14+ stops of dynamic range. This is compatible with the Cinema VariCam Look and precisely captures everything from shadows to highlights, as well as faithfully reproducing the color and texture subtleties of human skin. The V-Log View Assist enables you to view a simulation of the final look (hue, saturation and brightness) of your video image in camera using the Look Up Table (LUT) while you are shooting. With Look Up Table (LUT) installed on the camera, the video you record with V-Log can be modified to match the characteristics of your monitor display. The VariCam IDT for ACES can also be applied to footage shot on the S5. 35 conversion LUTs and ar tistic looks for VariCam^® cinema cameras and the AU-EVA1 can be downloaded from Panasonic's official web site.

V-log / V-Gamut with 14+ Stops of Dynamic Range

Anamorphic Recording

If you are shooting with an anamorphic lens that compresses the image width to an almost unrecognizable extreme, the S5 camera allows you to view a simulation of the final ‘desqueezed’ CinemaScope format (2.39:1 or 2.35:1), in one of five magnification options, 1.3x, 1.33x, 1.5x, 1.8x or 2.0x, stretched out on the camera monitor. This lets you decide the composition you want, and better visualize the impact of the final project.

Anamorphic Recording

5-Axis, Dual I.S 2 Image Stabilisation

The combination of a 5-axis Image Stabiliser in the camera body and Optical Image Stabilisation in compatible lenses results in an impressive 6.5 stops worth of correction. The result is sharperr images, and smoother video, even when using a slow shutter speed.

5-Axis, Dual I.S 2 Image Stabilisation

Specifications


	LUMIX S Full Frame Mirrorless Camera DC-S5K

Digital Camera
General Specifications
Mount	L mount
Camera Effective Pixels	24.20 megapixels
Image Sensor	35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Image stabilization	Image sensor shift type (5-axis / 6-stop) Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]
Focus mode	AFS (Single) / AFC (Continuous) / MF
AF mode	Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3 (Full area touch is available) (Scalable AF frame size and flexible AF position)
Metering mode	Multiple / Center Weighted / Spot / Highlight Weighted
ISO Sensitivity	Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
Exposure mode	Program AE, Aperture Priority AE, Shutter Priority AE, Manual
Exposure Compensation	1/3 EV step ±5EV (±3EV for motion picture)
Shutter Speed	Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25 Creative Video M mode / MF mode: 1/16,000 - 1/2
Recording Image Size (Max Pixels)	When using full-frame lenses: [4:3] 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* High Resolution Mode. 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.) [3:2] 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL) / 8496x5664(LL)* High Resolution Mode. 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.) [16:9] 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL) / 8496x4784(LL)* High Resolution Mode. 3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.) [1:1] 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL) / 5664x5664(LL)* *High Resolution Mode. 2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.) [65:24] 6000x2208(L) [2:1] 6000x3000(L)
Recording file format	Still image: JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072) 6K PHOTO** / 4K PHOTO: 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch)) 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch)) Extracted still images: JPEG (DCF, Exif 2.31) Video: MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit)) MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
Image Quality	RAW / RAW+Fine / RAW+Standard / Fine / Standard
Creative Control Mode	Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine* *For photos only.
Scene Mode	Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 / My Photo Style 1-10
Burst speed	Mechanical shutter / Electronic front curtain shutter: AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) Electronic shutter: AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) 6K PHOTO: 30 frames/sec 4K PHOTO: 60 frames/sec, 30 frames/sec
Viewfinder	OLED Live View Finder (Approx. 2360k dots)
LCD Monitor	3" free-angle TFT LCD monitor with static touch control (approx 1840K dots)
Battery life (approx.)	Approx. 440 images (rear monitor), 370 images (LVF), 1,500 images (Power Save LVF mode) with S-R2060 Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Memory	Slot 1: SD Memory Card Slot 2: SD Memory Card *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Dimensions (approx.) (W x H x D)	Approx.132.6 x 91.7 x 81.9 mm (excluding protrusions)
Weight (Body only) Approx.	Approx. 1,052g
Weight (includes SD Card and Battery) Approx.	Approx. 714g (XQD Memory Card x 1, Battery, Body) Approx. 1,017g (SD Memory Card x 1, Battery, Body)
Standard Accessories	Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C)
External microphone terminal	φ3.5mm for external microphone / external audio device
Internal Mic	Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
Flash
Flash	Flash Mode: Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Synchronization	Less than 1/250 second *Only when set to M mode or S
External microphone terminal	φ3.5mm for external microphone
Movie format
Movie format	6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch)) 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch)) Extracted still images: JPEG (DCF, Exif 2.31)
Mov (16:9)	59.94Hz Full-frame [6K] 5952x3968 (3:2): 23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) HLG is selectable. Full-frame [C4K] 4096x2160: 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. Full-frame [4K] 3840x2160: 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. Full-frame [FHD] 1920x1080: 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) HLG is selectable. 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP)* (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) HLG is selectable. 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) HLG is selectable. 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
AVCHD Progressive (16:9)	[FHD] 1920x1080: 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) 50.00i, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 25.00fps) 50.00i, 17Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 50.00fps) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
MPEG 4	59.94Hz Full-frame [4K] 3840x2160: 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) Full-frame [FHD] 1920x1080: 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) Super 35mm / Pixel by Pixel [4K] 3840x2160: 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) Super 35mm / Pixel by Pixel: 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
AVCHD (16:9)	59.94Hz Full-frame / Super 35mm / Pixel by Pixel [FHD] 1920x1080: 59.94p (Sensor output is 59.94fps), 28Mbps (4:2:0 8-bit LongGOP) (Dolby) 59.94i (Sensor output is 59.94fps), 17Mbps (4:2:0 8-bit LongGOP) (Dolby) 59.94i (Sensor output is 29.97fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby) 23.98p (Sensor output is 23.98fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
Phone Specification
Processor	Venus Engine
Wi-fi	Yes
Bluebooth	Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
