Smaller Multi-Split Inverter Type Air-Conditioner (Outdoor Unit) (2HP)
CU-2LU18BBA
Suggested Retail Price HK$11,800
- Product Main Features and Advantages
- Height of outdoor unit is 420mm, suitable for installation in most of Hong Kong's Air-conditioner hood
- Wi-Fi function, supported with Panasonic Comfort Cloud App**(Installation of WiFi Adapter CZ-TACG1 is required)(Read More)
- "Inverter" adjusts output power finely to maintain a constant temperature and conserve energy
- Environmental Friendly R32 Refrigerant
- Anti-Corrosive Blue Fin Condenser
- Product Specification
- 2 HP (Cooling Model - With Remote Control)
- 18,100 Btu/h
- Warranty
- 1 year warranty: Entire unit
- 5 years warranty: Compressor
- Complimentary 1 year of Scaffolding Supporting Plan (Read More), starting from the purchase date of 1/7/2024 - 30/9/2025.
- Installation Reference
*Scaffolding may be required, depending on the installation environment.
**Currently only available in Hong Kong
Overview

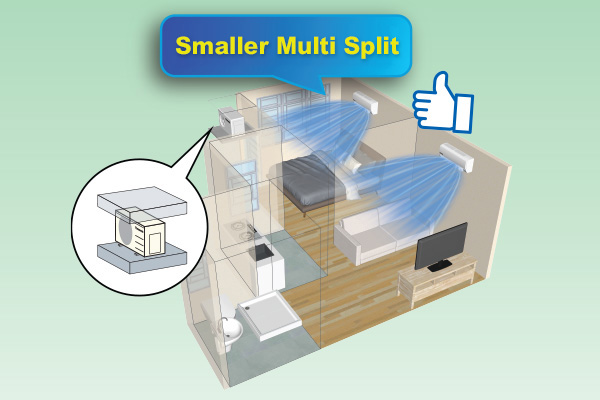

New Solution
Only 1 outdoor unit is needed for operating 2 indoor units!

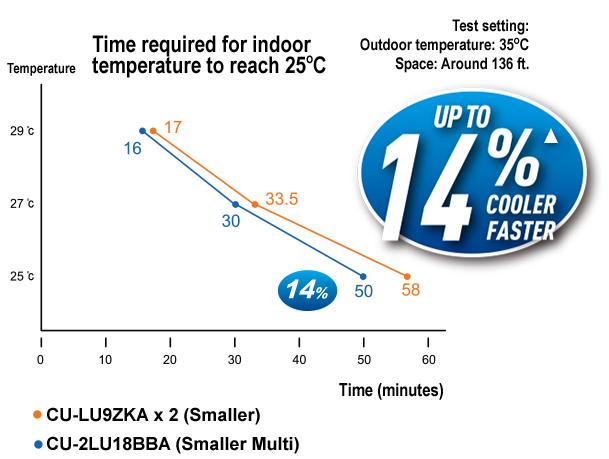

Better Cooling Performance
^According to our laboratory testing result, when using the above installation method, the cooling performance of one set of Smaller multi-split air conditioner is 14% faster than two sets of split-type air conditioner.
Better Energy saving
^According to our laboratory testing result, when using the above installation method, the energy consumption of one set of Smaller multi-split air conditioner is 27% lower than two sets of split-type air conditioner.
Compact Outdoor Unit
Height of outdoor unit is 420mm, suitable for installation in most of Hong Kong's Air-conditioner hood.
Flexible combination of Indoor Units
Flexible combination of Indoor Units (Maximum output: 2HP)
| Recommended combination |
|---|
| 3/4 HP + 1.5 HP |
| 1 HP + 1.5 HP |
| 1 HP + 1 HP |
Other combinations are also available, please refer to the
Specifications
Smaller Multi-Split Inverter Type Air-Conditioner (Outdoor Unit) (2HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Outdoor | CU-2LU18BBA | |
| Remote Control | ● | |
| Cooling Capacity | ||
| Btu/h | 18,100 | |
| kW | 5.30 | |
| EER | ||
| W/W | 3.21 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | 7.6 | |
| Input Power kW | 1.65 | |
| Outdoor Unit Dimension(H x W x D) | ||
| mm | 420 x 765 x 289 | |
| Net Weight | ||
| Outdoor | 29 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35 x2 / 1/4" | |
| Gas mm / inch | ψ9.52 / 3/8" | |
| Power Supply | Outdoor | |
| Pipe Length Range | ||
| m | 1 - 20 | |
Smaller Multi-Split Inverter Type Air-Conditioner (Outdoor Unit) (2HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Outdoor | CU-2LU18BBA | |
| Remote Control | ● | |
| Cooling Capacity | ||
| Btu/h | 18,100 | |
| kW | 5.30 | |
| EER | ||
| W/W | 3.21 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | 7.6 | |
| Input Power kW | 1.65 | |
| Outdoor Unit Dimension(H x W x D) | ||
| mm | 420 x 765 x 289 | |
| Net Weight | ||
| Outdoor | 29 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35 x2 / 1/4" | |
| Gas mm / inch | ψ9.52 / 3/8" | |
| Power Supply | Outdoor | |
| Pipe Length Range | ||
| m | 1 - 20 | |
