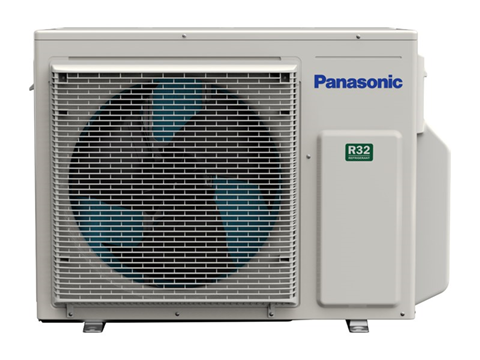

Wi-Fi AI Inverter Multi-Split Type Air-Conditioner (Outdoor Unit) (3HP)
CU-3U27YBZ
Suggested Retail Price HK$16,300
- 3 HP Cooling Model - With Remote Control
- 25,600 Btu/h
- R32 Refrigerant
Reference for Cooling Capacity of Air Conditioner and Room Size
*Scaffolding may be required, depending on the installation environment.
Overview
The negatively charged nanoe-G adheres with PM2.5, inhibit up to 99% PM2.5*1,bacteria and viruses(e.g., staphylococcus aureus*2, influenza [H1N1]*2, Escherichia coil phage*2)
nanoe-G ion generator releases negative ions.
Negative ions attach to dust particles.
The pollutants are being taken to the filter
*1FCG Research Institute lnc Test result *2Kitasato Research Center for Environmental Science test result
What is PM2.5?
PM 2.5 is know as particulate matter with size of less than 2.5 micrometers, which is one of the product of fossil fuel combustion. It is said to pose health problem as it can easily enter human lungs as it is smaller than bacteria.
Other Advantage of nanoe-G
Air-purifying operation can be activated independently
The air-purifying function can be activated independently when the cool mode and heat mode are off.
Maintenance-Free
No maintenance required for nanoe-G generator device as nanoe-G is generated from water in the air.
Low Energy Consumption
You don't have to worry about the hefty electricity bills as it only consumes a minimum amount of energy, 25W per hour for a single unit with fan mode.
*Energy Consumption may vary depending on models.
nanoe-G Air Purifying System
AEROWINGS Design
Specifications
Wi-Fi AI Inverter Multi-Split Type Air-Conditioner (Outdoor Unit) (3HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Outdoor | CU-3U27YBZ | |
| Remote Control | ● | |
| Cooling Capacity | ||
| Btu/h | 25,600 | |
| kW | 7.50 | |
| EER | ||
| W/W | 3.79 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | 9.2 | |
| Input Power kW | 1.98 | |
| Outdoor Unit Dimension(H x W x D) | ||
| mm | 695 x 875 (+95) x 320 | |
| Net Weight | ||
| Outdoor | 48 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35 x3 / 1/4" | |
| Gas mm / inch | ψ9.52 x3 / 3/8" | |
| Power Supply | Outdoor | |
| Pipe Length Range | ||
| m | 3-30 | |
Wi-Fi AI Inverter Multi-Split Type Air-Conditioner (Outdoor Unit) (3HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Outdoor | CU-3U27YBZ | |
| Remote Control | ● | |
| Cooling Capacity | ||
| Btu/h | 25,600 | |
| kW | 7.50 | |
| EER | ||
| W/W | 3.79 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | 9.2 | |
| Input Power kW | 1.98 | |
| Outdoor Unit Dimension(H x W x D) | ||
| mm | 695 x 875 (+95) x 320 | |
| Net Weight | ||
| Outdoor | 48 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35 x3 / 1/4" | |
| Gas mm / inch | ψ9.52 x3 / 3/8" | |
| Power Supply | Outdoor | |
| Pipe Length Range | ||
| m | 3-30 | |
