Flagship Model - Wi-Fi A.I. Inverter Split Type Heat Pump Air-Conditioner (2HP)
CS-Z18ZKA
Suggested Retail Price HK$19,200
-
Product Main Features and Advantages
- Equppied with nanoe®X Mark 3 Air Purifying System (Read more)
- Inhibiting 99.99% SARS-CoV-2 (Read more)
- Wi-Fi Function, Supported with Panasonic Comfort Cloud App** (Read More)
- Environmental Friendly R32 Refrigerant
-
Product Specification
- 2 HP (Heatpump Model - With Remote Control)
- Cooling Capacity: 17,700Btu/h
- Heating Capacity: 19,800Btu/h
- Grade 1 Energy Label
-
Warranty
-
1 year warranty: Entire unit
-
5 years warranty: Compressor
- Complimentary 1 year of Scaffolding Supporting Plan (Read More). starting from the purchase date of 1/7/2024 - 30/9/2025.
-
-
Installation Reference
Reference for Cooling Capacity of Air Conditioner and Room Size
*Scaffolding may be required, depending on the installation environment.
**Currently only available in Hong Kong
Overview
nanoe® X is a patented ion technology developed by Panasonic. It is an electrostatic atomization technology that collects invisible moisture in the air and applies high voltage to it to produce "hydroxyl radicals contained in water". The decisive factor is the existence of hydroxyl radicals inside nanoe®X. Hydroxyl radicals are characterized by being strongly oxidative and highly reactive to inhibit a wide variety of air-pollutants, associated with the effect of skin and hair motorization, which provides the best quality of air to your family.
7 Effects
The negatively charged nanoe-G adheres with PM2.5, inhibit up to 99% PM2.5*1,bacteria and viruses(e.g., staphylococcus aureus*2, influenza [H1N1]*2, Escherichia coil phage*2)
nanoe-G ion generator releases negative ions.
Negative ions attach to dust particles.
The pollutants are being taken to the filter
*1FCG Research Institute lnc Test result *2Kitasato Research Center for Environmental Science test result
What is PM2.5?
PM 2.5 is know as particulate matter with size of less than 2.5 micrometers, which is one of the product of fossil fuel combustion. It is said to pose health problem as it can easily enter human lungs as it is smaller than bacteria.
Japan SIAA Anti-static / Fungus Coating
It can prevent the fan from generating static electricity due to high-speed rotation, reduce dust or mold from adhering to the cross-flow fan, create a clean environment.
Intelligent, dynamic cooling with humidity control

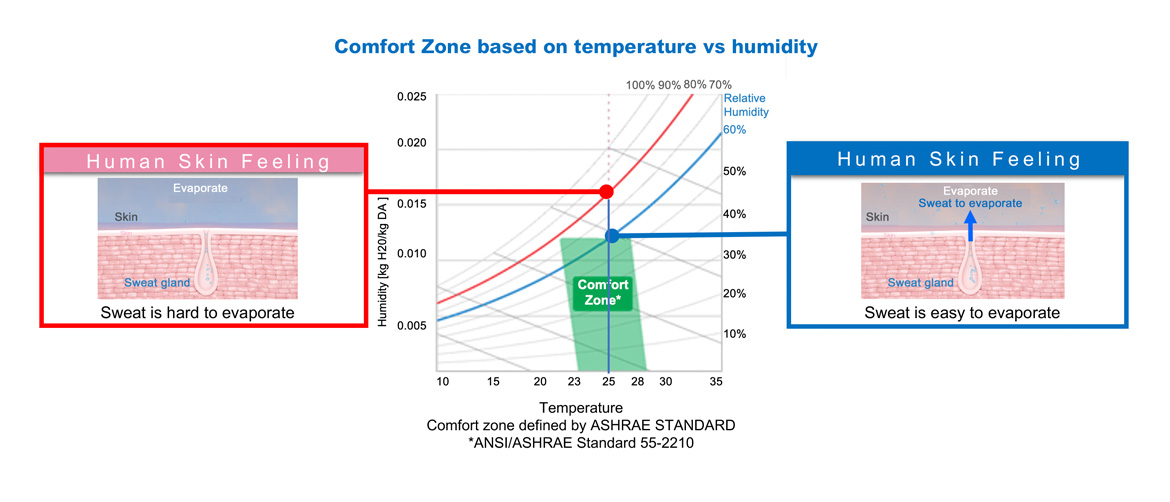

According to research, the human body feels most comfortable when indoor temperature is at its optimal level and relative humidity is below 60%.
iAutoX will first lower the room temperature, and use its built-in humidity sensor to control the humidity, creating a comfortable zone for user.
Intelligently Balances Energy Savings and Comfort
As each room in your home is different, ECO Mode Artificial Intelligence (A.I.) Control efficiently cools your room based on the amount of heat load and air conditioning capacity. It finds the perfect ECO balance between power consumption and time taken to reach the desired temperature to maintain your comfort with minimal energy waste.
ECO Mode with A.I. Control will automatically learn and judge what is the optimal ECO level based on:
1 Room Condition
2 Heat Source can be due to:
[A] Sunlight and lighting in the room
[B] Computers and appliances
[C] Body heat
When Your Air Conditioner is Switched on
Requires Fast Cooling
ECO Mode with A.I. Prioritises on maximising cooling comfort while saving energy through ECO Mode.
Does not require Fast Cooling
ECO Mode with A.I. prioritises on maximising energy savings over cooling comfort.
After Reaching Set Temperature
Consistent comfort day or night.
Saves energy after reaching set temperature.
ECO Mode with A.I. continues to save energy and automatically adjusts room temperature for consistent cooling comfort
*Comparison of ECO Mode & normal mode by using 1.5HP Inverter Model
Total power consumption amount is measured for 1 hour under stable operation. At Panasonic Amenity Room (size : 13.3 m2)
The effect differs according to conditions in installation and usage
*.Applicable for models with ECO+A.I. function only
【Anti-epidemic New Life of Panasonic nanoe™X Air Cond.】
【How to connect Panasonic Comfort Cloud ( Built-in Wifi)】
Specifications
Flagship Model - Wi-Fi A.I. Inverter Split Type Heat Pump Air-Conditioner (2HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Air-Conditioner | CS-Z18ZKA | |
| Outdoor | CU-Z18ZKA | |
| Inverter | ● | |
| Aerowings Feature Twin Flaps | ● | |
| Remote Control | ● | |
| Air-purifying System | nanoeX Mark 3+nanoe-G | |
| Cooling Capacity | ||
| Btu/h | 17,700 | |
| kW | 5.20 | |
| Heating Capacity | ||
| Btu/h | 19,800 | |
| kW | 5.80 | |
| EER | ||
| W/W | 3.71 | |
| Seasonal Performance Factor | ||
| Cooling Seasonal Performance Factor (CSPF) | 6.41 | |
| Heating Seasonal Performance Factor (HSPF) | 5.53 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | Cooling Capacity：6.50；Heating Capacity：6.50 | |
| Input Power kW | Cooling Capacity: 1.40 Heating Capacity: 1.40 | |
| Power Plug | 3-round-pin 15A plug | |
| Moisture Removal | ||
| L/h | 2.9 | |
| Pt/h | 6.1 | |
| Air Circulation(Indoor / Hi) | ||
| m³/min. | Cooling Capacity：18.7；Heating Capacity：18.7 | |
| ft³/min. | Cooling Capacity：660；Heating Capacity：660 | |
| Indoor Unit Dimension(H x W x D) | ||
| mm | 295 X 1040 X 244 | |
| Outdoor Unit Dimension(H x W x D) | ||
| mm | 619 x 824 x 299 | |
| The protruding pipes are excluded. For details, please download the file named “Dimension” in the section “Support”. | ||
| Net Weight | ||
| Indoor Unit | 12 kg | |
| Outdoor | 32 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35 / 1/4" | |
| Gas mm / inch | ψ12.70 / 1/2" | |
| Power Supply | Indoor | |
| Pipe Length Range | ||
| m | 3-30 | |
| ft | 9.8-98.4 | |
Flagship Model - Wi-Fi A.I. Inverter Split Type Heat Pump Air-Conditioner (2HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Air-Conditioner | CS-Z18ZKA | |
| Outdoor | CU-Z18ZKA | |
| Inverter | ● | |
| Aerowings Feature Twin Flaps | ● | |
| Remote Control | ● | |
| Air-purifying System | nanoeX Mark 3+nanoe-G | |
| Cooling Capacity | ||
| Btu/h | 17,700 | |
| kW | 5.20 | |
| Heating Capacity | ||
| Btu/h | 19,800 | |
| kW | 5.80 | |
| EER | ||
| W/W | 3.71 | |
| Seasonal Performance Factor | ||
| Cooling Seasonal Performance Factor (CSPF) | 6.41 | |
| Heating Seasonal Performance Factor (HSPF) | 5.53 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | Cooling Capacity：6.50；Heating Capacity：6.50 | |
| Input Power kW | Cooling Capacity: 1.40 Heating Capacity: 1.40 | |
| Power Plug | 3-round-pin 15A plug | |
| Moisture Removal | ||
| L/h | 2.9 | |
| Pt/h | 6.1 | |
| Air Circulation(Indoor / Hi) | ||
| m³/min. | Cooling Capacity：18.7；Heating Capacity：18.7 | |
| ft³/min. | Cooling Capacity：660；Heating Capacity：660 | |
| Indoor Unit Dimension(H x W x D) | ||
| mm | 295 X 1040 X 244 | |
| Outdoor Unit Dimension(H x W x D) | ||
| mm | 619 x 824 x 299 | |
| The protruding pipes are excluded. For details, please download the file named “Dimension” in the section “Support”. | ||
| Net Weight | ||
| Indoor Unit | 12 kg | |
| Outdoor | 32 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35 / 1/4" | |
| Gas mm / inch | ψ12.70 / 1/2" | |
| Power Supply | Indoor | |
| Pipe Length Range | ||
| m | 3-30 | |
| ft | 9.8-98.4 | |
