S-R2060

LUMIX S 20-60mm F3.5 - 5.6
Suggested Retail Price HK$5,990

Product

Highlights

Ultra wide zoom lens - LUMIX S 20-60mm F3.5 - 5.6

Features

  • Ultra wide 20mm and 0.15m stunning close-up capability (at 20-26mm)
  • 11 elements in 9 groups lens construction (2 ASPH, 3 ED, 1 UHR)
  • Support 240fps AF control and 4K video recording
  • Compact, approx. 350g lightweight profile
  • Splash / dust proof design*

*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water

Snow

Unique and Versatile
20-60mm Focal Length

The compact, lightweight lens features a versatile focal range that encompasses an ultra-wide 20mm to standard 60mm, making it ideal for landscapes, travel and everyday photography.

Snow

Excellent Close-up Capability

Closest focusing distance 0.15m (at wide-angle) / 0.4m (at tele-angle) and maximum magnification 0.43x lets you shoot anything including food and flowers photography.

Snow

Durability for Various Weather Conditions

The fluorine coating applied to the front lens prevents the sticking of oil-based dirt, in addition to a dust and splash resistant construction* that protects the lens system inside from sand, rain and more. This lens is also tough enough to withstand harsh environments at -10 degrees Centigrade.

*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.

Snow

S-R2060GC Construction

11 Elements in 9 Groups 2 ASPH / 3 ED / 1 UHR

  • ASPH lenses correct astigmatism and provides high resolution performance.
  • UHR lens ensures uniform image rendering across the entire frame from the center to the edges.
  • ED lenses suppress axial color aberration and transverse chromatic aberration.
Snow

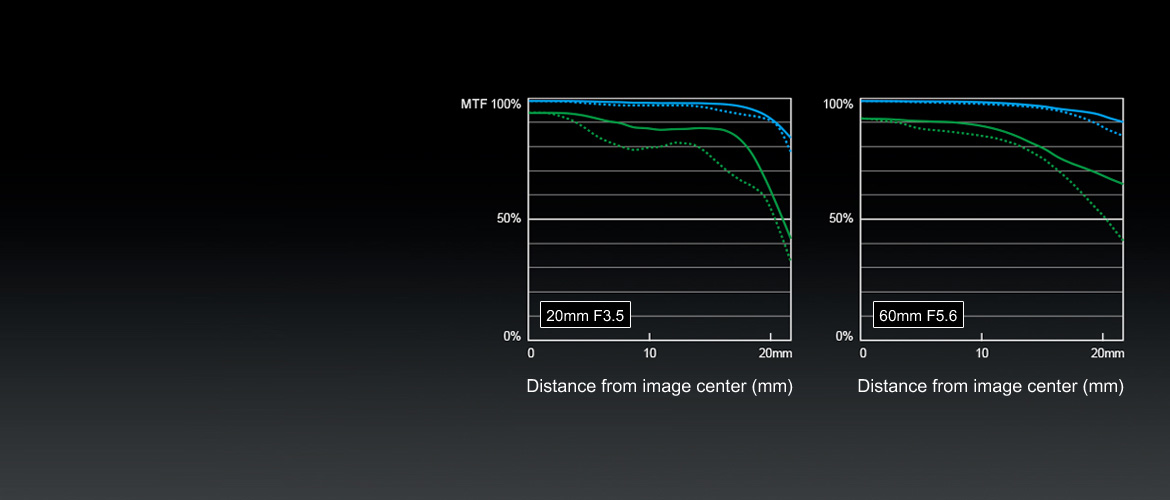

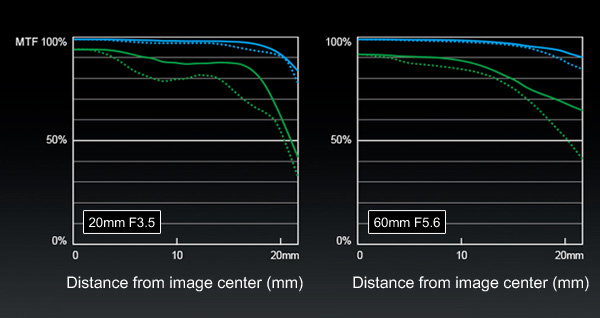

MTF Chart

Offering outstanding resolution throughout the entire zoom range and expressive potential without compromise, this is an ideal lens for the LUMIX full-frame system.

*For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the center of the corrected image.

Accessories

Specifications


LUMIX S 20-60mm F3.5 - 5.6
Digital Camera
General Specifications
MountL-Mount
Lens Structure11 elements in 9 groups (2 aspherical lens, 3 ED lenses, 1 UHR lens)
Focal Lengthf=20-60mm
ApertureF3.5 (Wide) - F5.6 (Tele)
Minimum ApertureF22
Aperture Type9 diaphragm blades / Circular aperture diaphragm
Diagonal Angle of View94°(Wide) - 40°(Tele)
Closest Focusing Distance0.15m (at focal length 20-26mm)
Maximum magnificationApprox. 0.43x
Aperture RingYes
Filter Sizeφ67mm
Overall Length (Approx.)Approx. 87.2mm
Weight (Approx.)Approx. 350 g
Standard AccessoriesLens cap, Lens rear cap, Lens hood

Downloads

- Download the latest firmware

Warranty

Warranty registration is not required for this product. Customers must retain the “Product Warranty Card” and the original of purchase invoice for verification when repair service is required.
