Introducing nanoe® X Generator Mark 3, the latest of the continuously evolving nanoe® X technology, it has the largest amount of hydroxyl radical in the history of nanoe® which generates 48 trillion hydroxyl radical per second, 100 times the hydroxyl radical contained in traditional nanoe®. The increased number of hydroxyl radical, which are the key to nanoe® cleaning power, means you can expect an even higher level of performance (Effective against bacteria, viruses, mould, PM2.5, allergens and odors).
nanoe X® Generator Mark 3, the pinnacle of all our knowledge and technology, will protect your air and keep every inch of your room clean and fresh every second of the day.
The amount of hydroxyl radicals generated increased 100 times, compared to original nanoe®.
Greater effectiveness even in large spaces of more than 100 m2.

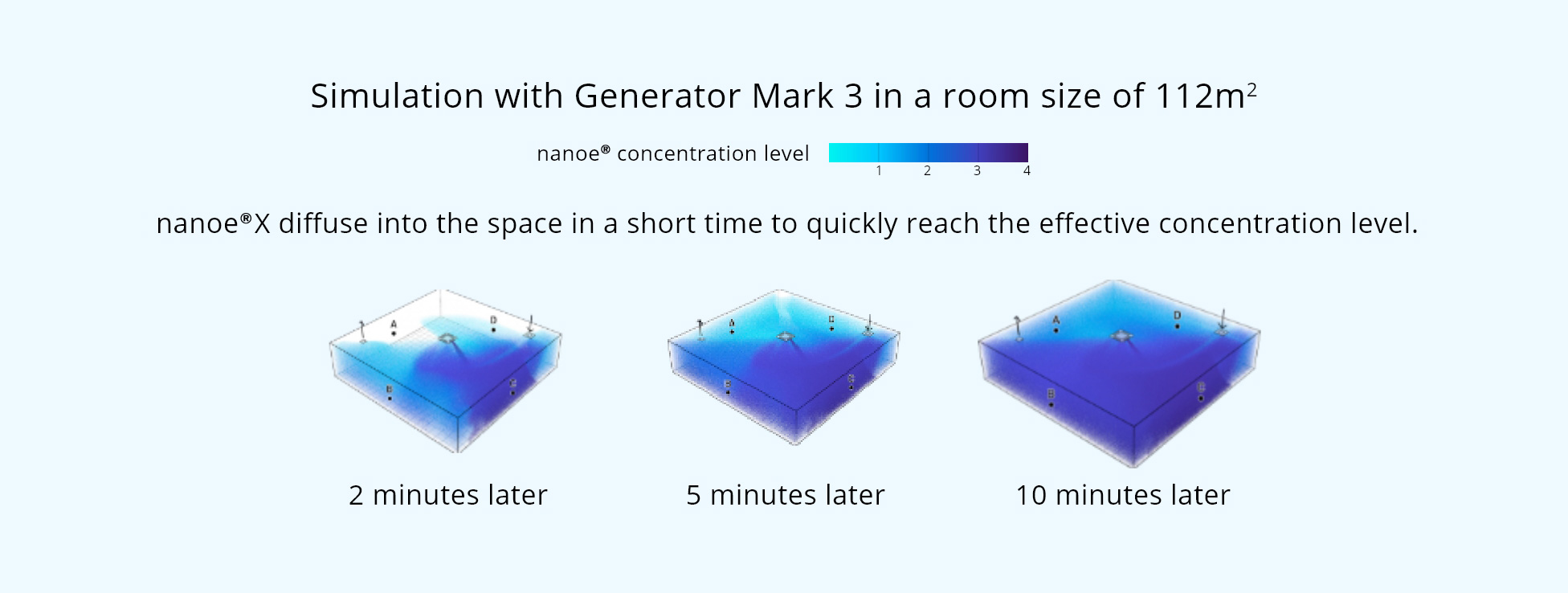

Conditions of the Simulation: Inspection / Model: 4-way cassette / Room size: 112m2 / Room height: 2.4m / Position of IDU: Centre of space / Ventilation: 3 times/hour

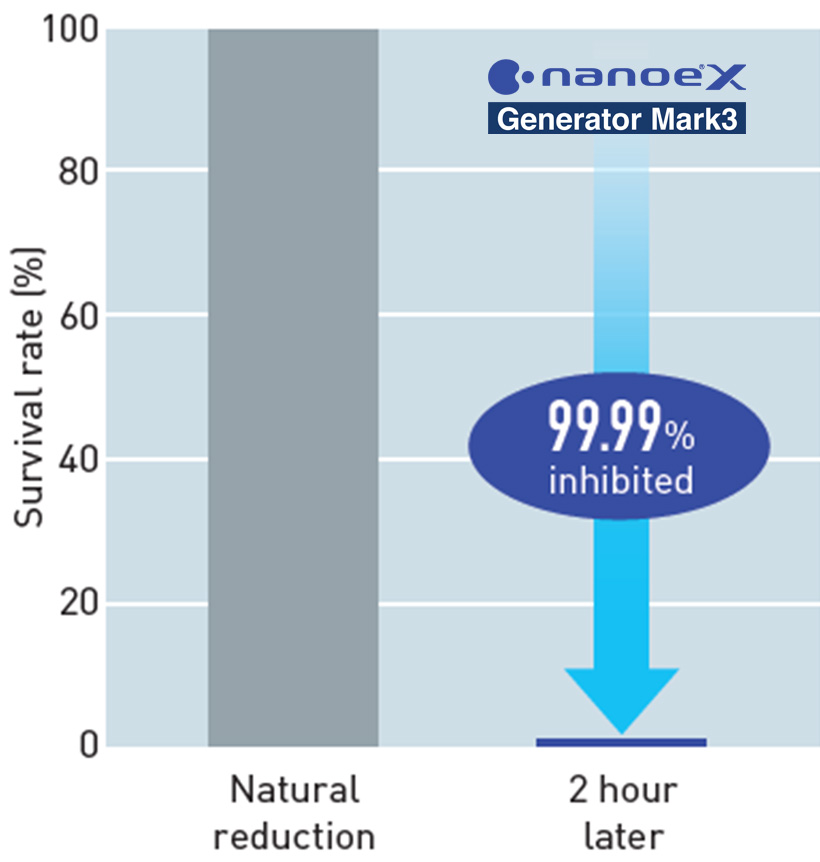

(1) Testing organisation: Shokukanken, Inc.
(2) Test subject: Adhered MS2 Phage Virus
(3) Test volume: Approx. 25m3 laboratory
(4) Test result: Inhibited 99.99% in 2 hours
(5) Report No.: 227131N
Test Ambient
Approx.25m3
Test Result
MS2 Phage Virus
An air conditioner equipped with nanoe® X Generator Mark 3 inhibits activity of adhered virus (Bacteriophage) by 98.81％ in 4 hours.
Testing organisation: SGS Inc / Test subject: Adhered Bacteriophage / Test volume: Approx. 139m large space (6.6×8.9x2.48m)
Test result: Inhibited 98.81％ in 4 hours
Test repot no.: SHES210901902583
Test Ambient
Approx.139m3 (1):6.6ｍ (2):8.9ｍ (3):2.48m
Test Result
Bacteriophage
An air conditioner equipped with nanoe® X Generator Mark 3 reduces cigarette smoke odour intensity by 1.7 levels in 30 mins.
Testing organisation: SGS Inc / Test subject: Adhered cigarette smoke odour / Test volume: Approx. 139m large space (6.6×8.9x2.48m)
Test result: Odour intensity reduced 1.7 levels in 30 mins.
Test repot no.: SHES210901902478
Test Ambient
Approx.139m3 (1):6.6ｍ (2):8.9ｍ (3):2.48m
Test Result
Cigarette smoke odour
Better deodorisation results than with the
Generator Mark 2
Greatly improved deodorisation speed
Odour intensity: 5-Very strong odour 4-Strong odour 3-Easily detectable odour
2-Weak, recognisable odour (cognitive threshold concentration) 1-Barely detectable odour (detection threshold concentration) 0-No odour
The result of nanoe® X Generator Mark 3

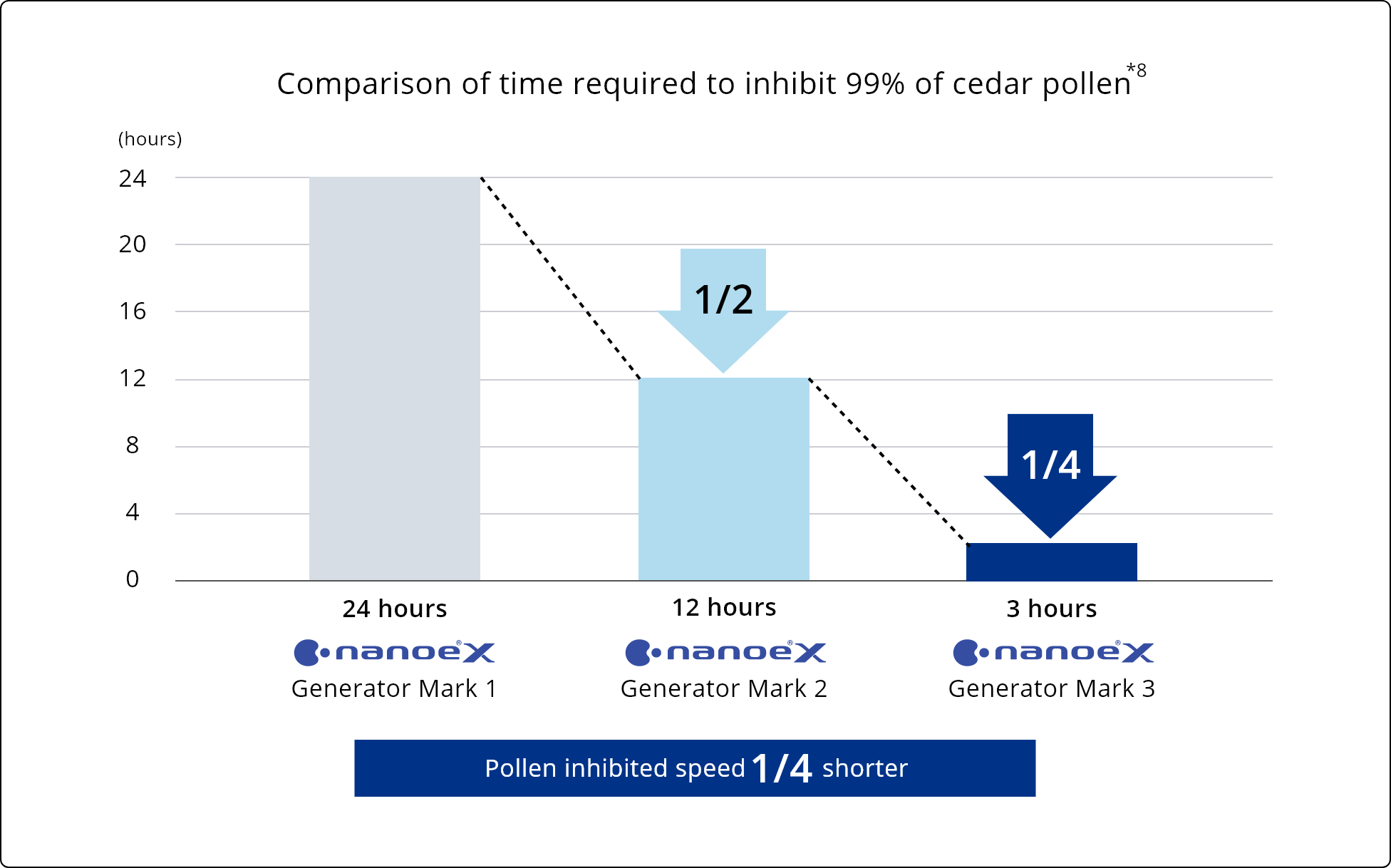

Inhibits pollen in 1/4 the time of nanoe® X Generator Mark 2*7
Inhibits mould growth in fans and heat exchangers*6
Internal Cleaning Function
After cooling/drying function, the inside of the indoor unit is automatically dried.
nanoe® X Operating time
| Operations | ON | Air purification with nanoe® X |
| OFF | Internal Cleaning Function |
| Operating Timing | ON | Cooling / Heating / DRY / Fan |
| OFF | Cool / Dry operation |
Dried with a fan to dissipate internal heat
Internal circulation of nanoe® X with a fan
Results of Mould Inhibition Test
Comparison with and without internal cleaning function.
Test Method: A mould sensor from the Laboratory for mold prediction was installed in an indoor unit (CS-P80U7H) and the growth of mould was compared after 9 days of cooling operation (3 hours of cooling operation and 21 hours of shutdown) with and without internal cleaning.
Environmental Conditions: Temperature 25°C, humidity 70%
Testing Organisation: Laboratory for mould prediction
Test Report Nos.: 210804, 210810, 210805, 210811
*1 This is not a proven effect in an actual operating space. The deodorizing effect depends on the size of the operating space, ambient environment (temperature and humidity), operation time, and types of odours absorbed in fibres. *2 Effectiveness in a test space of approx. 230 m3. The figures are not the results of tests conducted in an actual operating space.*3 [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m3) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P160U6 equivalent tester equipped with a nanoe® X Generator Mark 3 and release of nanoe® [Target] Adhered sweat odour (hexanoic acid) [Test result] Odour intensity was reduced to 1.0 in 2 hours (R21HM004-0) [Method of deodorisation] Operation of a CS-P80U6 4-way cassette equipped with a nanoe® X Generator Mark 2 and release of nanoe® [Target] Adhered sweat odour (hexanoic acid) [Test Result] Odour intensity was reduced to 3.1 in 2 hours (L19YK032-11) *4 [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m3) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P160U6 equivalent tester equipped with a nanoe® X Generator Mark 3 and release of nanoe® [Target] Adhered urine odour (trimethylamine) [Test Result] Odour intensity reduced to 1.0 in 2 hours (R21HM005-0) *5 [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m3) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P160U6 equivalent tester equipped with a nanoe® X Generator Mark 3 and release of nanoe® [Target] Adhered faeces odour (methyl mercaptan) [Test Result] Odour intensity reduced to 1.0 in 2 hours (R21HM006-0) *6 While this function is effective in inhibiting mould growth, it does not prevent mould from occurring. The mould growth inhibition effect may vary depending on the installation environment and operating time. *When using the nanoe® X Generator Mark 3 function, a multi-function wired remote control (CZ-10RT4C) is required. (The floor-standing type with a built-in control switch in the main unit can be used.) *Only ON/OFF operation is possible with the multilingual wired remote controller (CZ-10RTF4). Also, local setup is required to use the nanoe® X Generator Mark 3. *7 Effect after 3 hours in a test space of approx. 24 m3. The figures are not the results of testing in an actual operating space.
