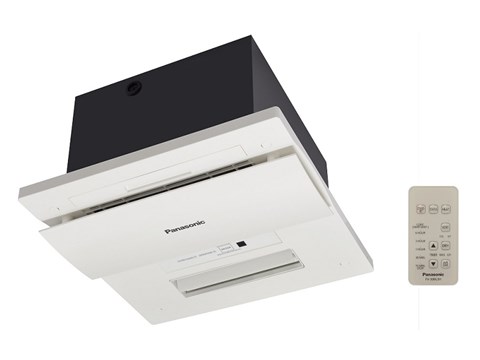

Ceiling Mount Thermo Ventilator (Slim)
FV-30BG3H
Suggested Retail Price HK$3,380
- Powerful Ventilating Capacity (170m³/h) for bathroom drying
- Auto Swing Operation
- Body height 180 mm only. Suitable for Hong Kong living environment
- Power consumption: 1,650W
- Heating, Clothes Drying, Ventilation and Circulation
- Alleru-buster Filter
- Dimension (mm)：360 (L) x 360 (W) x 219 (H)
- Max. time
- Heat: 180mins
- Vent: CONT.
- Dry Hot: 360mins
- Dry Cool: CONT.
Overview
- Powerful Ventilating Capacity (170m³/h) for bathroom drying
- Auto Swing Operation
- Body height 180 mm only. Suitable for Hong Kong living environment
- Power consumption: 1,650W
- Heating, Clothes Drying, Ventilation and Circulation
- Alleru-buster Filter
- Water-resistant Remote Control
- Dimension (mm)：360 (L) x 360 (W) x 219 (H)
- Max. time
- Heat: 180mins
- Vent: CONT.
- Dry Hot: 360mins
- Dry Cool: CONT.
Specifications
Ceiling Mount Thermo Ventilator (Slim) | |
|---|---|
| Thermo Ventilator | |
| Heater | PTC |
| Installation Type | Ceiling Mount |
| Control Type | Wireless Remote |
| Auto Swing | Yes |
| Heating | Yes |
| Dry | Hot ● Cool |
| Ventilation | Yes |
| Timer | 15 ● 30 ● 60 ● 180 ● 360Minute CONT. |
| Air Volume (Ventilation) | 170 m³/h |
| Air Volume (Circulation) | 170 m³/h |
| Noise (Ventilation) | 39 dB |
| Noise (Heating) | 46 dB |
| Wattage (Ventilation) | 28 W |
| Wattage (Power Consumption) | 1,650 W |
| Filter | Antibacterial Filter |
| No. of Motor / Blade | 1/1 |
| No. of Exhaust Outlet | 1 |
| Installation Hole Size | 300mm(L) x 300mm(W) |
| Louver Size | 360mm(L) x 360mm(W) |
| Duct Diameter | 100mm |
| Power Cord | Not included |
Ceiling Mount Thermo Ventilator (Slim) | |
|---|---|
| Living | |
| Thermo Ventilator | |
| Heater | PTC |
| Installation Type | Ceiling Mount |
| Control Type | Wireless Remote |
| Auto Swing | Yes |
| Heating | Yes |
| Dry | Hot ● Cool |
| Ventilation | Yes |
| Timer | 15 ● 30 ● 60 ● 180 ● 360Minute CONT. |
| Air Volume (Ventilation) | 170 m³/h |
| Air Volume (Circulation) | 170 m³/h |
| Noise (Ventilation) | 39 dB |
| Noise (Heating) | 46 dB |
| Wattage (Ventilation) | 28 W |
| Wattage (Power Consumption) | 1,650 W |
| Filter | Antibacterial Filter |
| No. of Motor / Blade | 1/1 |
| No. of Exhaust Outlet | 1 |
| Installation Hole Size | 300mm(L) x 300mm(W) |
| Louver Size | 360mm(L) x 360mm(W) |
| Duct Diameter | 100mm |
| Power Cord | Not included |
Accessories
Pipe Hood
FAQ
- Is Thermo Ventilator provided with power cord?
- Can the thermo ventilator adjust manually the temperature of bathroom?
- Can the thermo ventilator be modified to install into different installation ways that are not mentioned in operation manual?
- Can the filter be cleaned by water?
- Does the thermo ventilator need maintenance?
- What kind of battery does the remote control recommend to use?
- How long should the thermo Ventilator be cleaned?
- How is the filter cleaning indication lamp off?
Q
Is Thermo Ventilator provided with power cord?
A
No, the Thermo Ventilator is not provided with power cord. Please purchase them in market.
