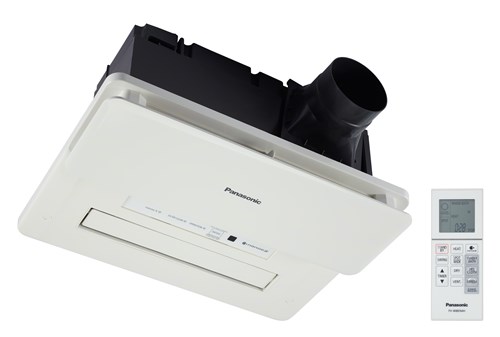

Ceiling Mount nanoe®X Thermo Ventilator (Deluxe)

FV-40BEN4H

Product | Accessories

Suggested Retail Price HK$5,980

  • Equipped nanoe®X Air-purifying Function to Inhibit the Activity of Airborne, Adhered Bacteria and Viruses
  • Upgraded Preset Programs - “CARE MODE+”, Automatically Switch the Working Function, Provide You a Better User Experience
  • Body Height 180mm Only. Suitable for Hong Kong Living Environment
  • Antibacterial Filter
  • Maximum Power Consumption: 2,650W
  • Dimension (mm)：472 (L) x 350 (W) x 229 (H)

Overview

  • Equipped nanoe®X Air-purifying Function to Inhibit the Activity of Airborne, Adhered Bacteria and Viruses
  • nanoe®X Device Generate up to 9,600 Billion of Hydroxyl Radicals per Second whose Amount is 20 Times than nanoe®
  • nanoe®X is Effective in Suppressing up to 99.9% Viruses and Bacteria such as Influenza Virus (H1N1, H5N1), Escherichia Coli (O157) and Staphylococcus Aureus (MRSA)
  • nanoe®X Inhibits up to 99.99% of SARS-COV2 Virus
  • nanoe®X is Effective to Reduce Odour, like Sweat Odour and Damp Odour, to Keep Bathroom Air Fresh
  • nanoe®X Inactivates on Mold to Prevent Musty Odour and Mildew
  • nanoe®X Generates through Condensation and Ionization of Moisture in Air, Eliminates the Need of nanoe®X Unit Replacement
  • Heating, Clothes Drying, Ventilation and Circulation
  • Upgraded Preset Programs - “CARE MODE+”, Automatically Switch the Working Function, Provide You a Better User Experience
    • Warm Bath
    • Dry cloth
    • Refresh
  • Auto Swing Operation
  • Body Height 180mm Only. Suitable for Hong Kong Living Environment
  • Antibacterial Filter
  • Water-resistant Remote Control (IPX4)
  • Maximum Power Consumption: 2,650W
  • Dimension (mm): 472(L) x 350 (W) x 229 (H)
  • With Timer Setting. Max. Time
    • Heat: 180 mins
    • Vent: CONT.
    • Dry Hot: 360 mins
    • Dry Cool: CONT.
    • nanoe®X: CONT.

Specifications


Ceiling Mount nanoe®X Thermo Ventilator (Deluxe)
FV-40BEN4H
Thermo Ventilator
HeaterPTC
Installation TypeCeiling Mount
Control TypeWireless Remote
Auto ModeYes
Auto SwingYes
HeatingHi ● Lo ● Auto
DryHot ● Cool
VentilationHi ● Lo
Timer5 - 720Minute CONT.
Air Volume (Ventilation)220 m³/h
Air Volume (Circulation)170 m³/h
Noise (Ventilation)42 dB
Noise (Heating)45 dB
Wattage (Ventilation)29 W
Wattage (Power Consumption)2,650 W (16A or Above Power Source is Required)
FilterAntibacterial Filter
No. of Motor / Blade2/2
No. of Exhaust Outlet1
Installation Hole Size400mm(L) x 280mm(W)
Louver Size472mm(L) x 350mm(W)
Duct Diameter100mm
Power CordNot included

Ceiling Mount nanoe®X Thermo Ventilator (Deluxe)
FV-40BEN4H
Living
Thermo Ventilator
HeaterPTC
Installation TypeCeiling Mount
Control TypeWireless Remote
Auto ModeYes
Auto SwingYes
HeatingHi ● Lo ● Auto
DryHot ● Cool
VentilationHi ● Lo
Timer5 - 720Minute CONT.
Air Volume (Ventilation)220 m³/h
Air Volume (Circulation)170 m³/h
Noise (Ventilation)42 dB
Noise (Heating)45 dB
Wattage (Ventilation)29 W
Wattage (Power Consumption)2,650 W (16A or Above Power Source is Required)
FilterAntibacterial Filter
No. of Motor / Blade2/2
No. of Exhaust Outlet1
Installation Hole Size400mm(L) x 280mm(W)
Louver Size472mm(L) x 350mm(W)
Duct Diameter100mm
Power CordNot included

Accessories

Pipe Hood

Pipe Hood for Thermo Ventilator (With Net)

FVMGX100P

HK$170


FAQ

  1. Is Thermo Ventilator provided with power cord?
  2. Can the thermo ventilator adjust manually the temperature of bathroom?
  3. Can the thermo ventilator be modified to install into different installation ways that are not mentioned in operation manual?
  4. Can the filter be cleaned by water?
  5. Does the thermo ventilator need maintenance?
  6. How long should the thermo Ventilator be cleaned?
  7. How is the filter cleaning indication lamp off?

Q

Is Thermo Ventilator provided with power cord?

A

No, the Thermo Ventilator is not provided with power cord. Please purchase them in market.
