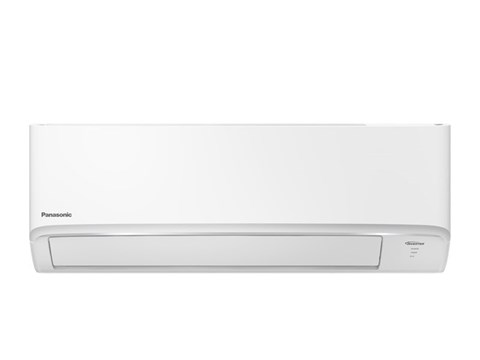

Smaller Multi-Split Inverter Type Air-Conditioner (Indoor Unit) (1 HP)
CS-MPU9BKA
Suggested Retail Price HK$2,880
- Product Main Features and Advantages

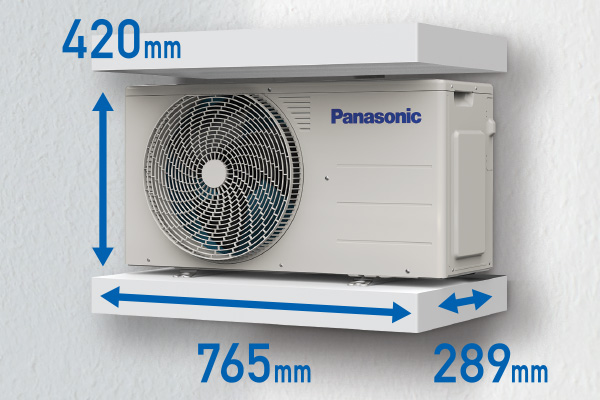

- Height of outdoor unit is 420mm, suitable for installation in most of Hong Kong's Air-conditioner hood
- Wi-Fi function, supported with Panasonic Comfort Cloud App**(Installation of WiFi Adapter CZ-TACG1 is required)(Read More)

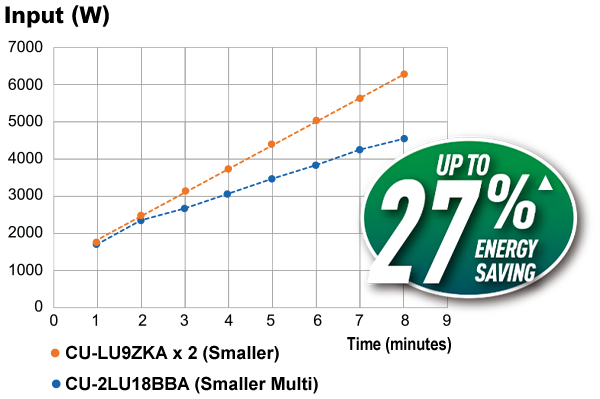

- "Inverter" adjusts output power finely to maintain a constant temperature and conserve energy
- Environmental Friendly R32 Refrigerant
- Anti-Corrosive Blue Fin Condenser
- Product Specification
- 1 HP (Cooling only model - With Remote Control)
- 9,550 Btu/h
- Warranty
- 1 year warranty: Entire unit
- 5 years warranty: Compressor
- Complimentary 1 year of Scaffolding Supporting Plan (Read More), starting from the purchase date of 1/7/2024 - 30/9/2025.
- Installation Reference
*Scaffolding may be required, depending on the installation environment.
**Currently only available in Hong Kong
Overview
Specifications
Smaller Multi-Split Inverter Type Air-Conditioner (Indoor Unit) (1 HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Inverter | ● | |
| Remote Control | ● | |
| Cooling Capacity | ||
| Btu/h | 9,550 | |
| kW | 2.80 | |
| EER | ||
| W/W | 4.12 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | 3.4 | |
| Input Power kW | 0.68 | |
| Power Plug | Without plug | |
| Moisture Removal | ||
| L/h | 1.6 | |
| Air Circulation(Indoor / Hi) | ||
| m³/min. | 12.7 | |
| ft³/min. | 450 | |
| Indoor Unit Dimension(H x W x D) | ||
| mm | 290 x 779 x 209 | |
| Net Weight | ||
| Indoor Unit | 8 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35/ 1/4" | |
| Gas mm / inch | ψ9.52/ 3/8" | |
| Power Supply | Outdoor | |
Smaller Multi-Split Inverter Type Air-Conditioner (Indoor Unit) (1 HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Inverter | ● | |
| Remote Control | ● | |
| Cooling Capacity | ||
| Btu/h | 9,550 | |
| kW | 2.80 | |
| EER | ||
| W/W | 4.12 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | 3.4 | |
| Input Power kW | 0.68 | |
| Power Plug | Without plug | |
| Moisture Removal | ||
| L/h | 1.6 | |
| Air Circulation(Indoor / Hi) | ||
| m³/min. | 12.7 | |
| ft³/min. | 450 | |
| Indoor Unit Dimension(H x W x D) | ||
| mm | 290 x 779 x 209 | |
| Net Weight | ||
| Indoor Unit | 8 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35/ 1/4" | |
| Gas mm / inch | ψ9.52/ 3/8" | |
| Power Supply | Outdoor | |
