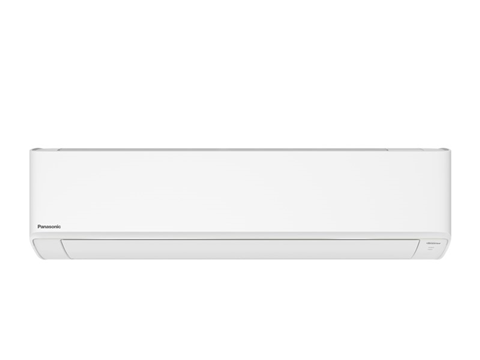

Wi-Fi Inverter Split Type Air-Conditioner(2.5 HP)
CS-YU24ZKA
Suggested Retail Price HK$18,900
- Product Main Features and Advantages
- PM2.5 filter
- Wi-Fi function, supported with Panasonic Comfort Cloud App**(Installation of WiFi Adapter CZ-TACG1 is required)(Read More)
- "Inverter" adjusts output power finely to maintain a constant temperature and conserve energy
- BIG FLAP Wind Guide Design
- Environmental Friendly R32 Refrigerant
- Anti-Corrosive Blue Fin Condenser
- Product Specification
- 2 1/2 HP (Cooling Model - With Remote Control)
- 23,200 Btu/h
- Grade 1 Energy Label
- Warranty
- 1 year warranty: Entire unit
- 5 years warranty: Compressor
- Complimentary 1 year of Scaffolding Supporting Plan (Read More), starting from the purchase date of 1/7/2024 - 30/9/2025.
- Installation Reference
*Scaffolding may be required, depending on the installation environment.
**Currently only available in Hong Kong
Overview
Specifications
Wi-Fi Inverter Split Type Air-Conditioner(2.5 HP) | ||
|---|---|---|
| Living | ||
| Air-Conditioner | ||
| Air-Conditioner | CS-YU24ZKA | |
| Outdoor | CU-YU24ZKA | |
| Inverter | ● | |
| Aerowings Feature Twin Flaps | ● | |
| Remote Control | ● | |
| Cooling Capacity | ||
| Btu/h | 23,200 | |
| kW | 6.80 | |
| EER | ||
| W/W | 3.51 | |
| Seasonal Performance Factor | ||
| Cooling Seasonal Performance Factor (CSPF) | 5.53 | |
| Power Supply | ||
| Voltage V | 220 | |
| Power Consumption A | 9.0 | |
| Input Power kW | 1.94 | |
| Moisture Removal | ||
| L/h | 3.9 | |
| Air Circulation(Indoor / Hi) | ||
| m³/min. | 20.4 | |
| Indoor Unit Dimension(H x W x D) | ||
| mm | 295 x 1040 x 244 | |
| Outdoor Unit Dimension(H x W x D) | ||
| mm | 695 x 875 x 320 | |
| Net Weight | ||
| Indoor Unit | 12 kg | |
| Outdoor | 30 kg | |
| Piping Diameter | ||
| Liquid mm / inch | ψ6.35 / 1/4" | |
| Gas mm / inch | ψ15.88 / 5/8" | |
| Power Supply | Indoor | |
| Pipe Length Range | ||
| m | 3-30 | |
| ft | 9.8-98.4 | |
