NA-S086S1

Steam Hygiene 2-in-1 Washer Dryer (Washing capacity: 8kg, Drying capacity: 6kg)(Free standard installation)^
Suggested Retail Price HK$7,880

Product | Accessories

Highlights

  • Slim design with 475mm depth to save space
  • New “Steam Hygiene” mode generates hot steam before washing and achieves 99.99% bacteria elimination*
  • New “Stain Support” mode provides intensive stain removal, including (i) Food, (ii) Drinks, (iii) Sports & Fitness, (iv) Outdoor and Workers, and (v) Health & Beauty
  • 3-level dry modes and adjustable dry time options for selected programmes (30∕60∕90∕120∕180min)
  • Inverter drive motor for quiet operation

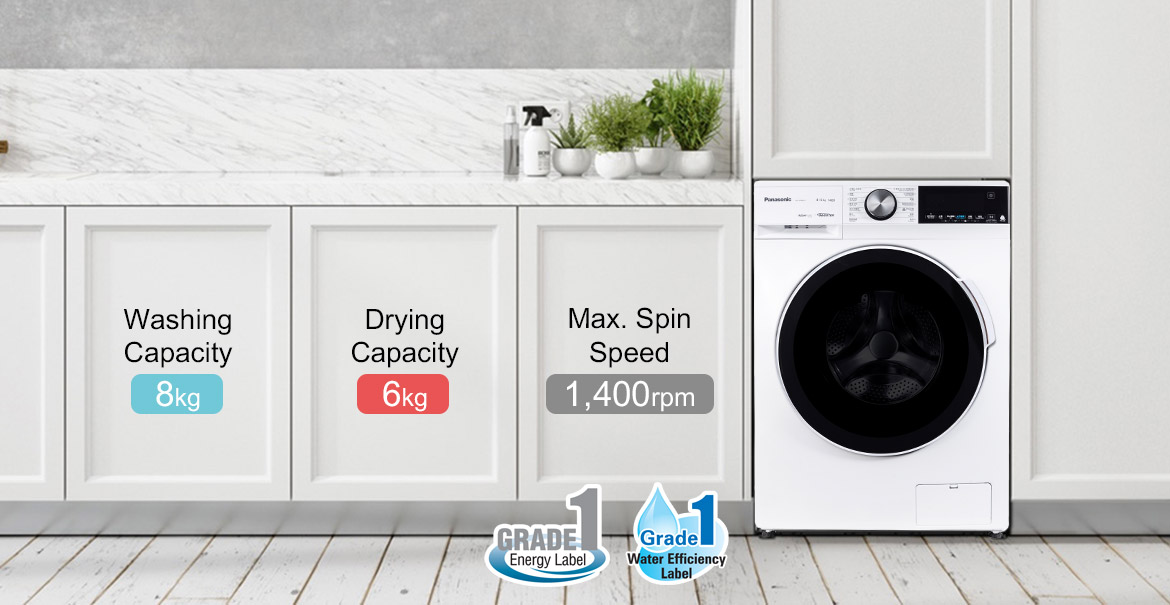

  • Washing capacity : 8kg
  • Drying capacity : 6kg
  • Spin speed : 600 - 1,400 (rpm)

Features

  • Washing capacity: 8kg
  • Drying capacity: 6kg
  • Spin speed: 600 - 1,400rpm

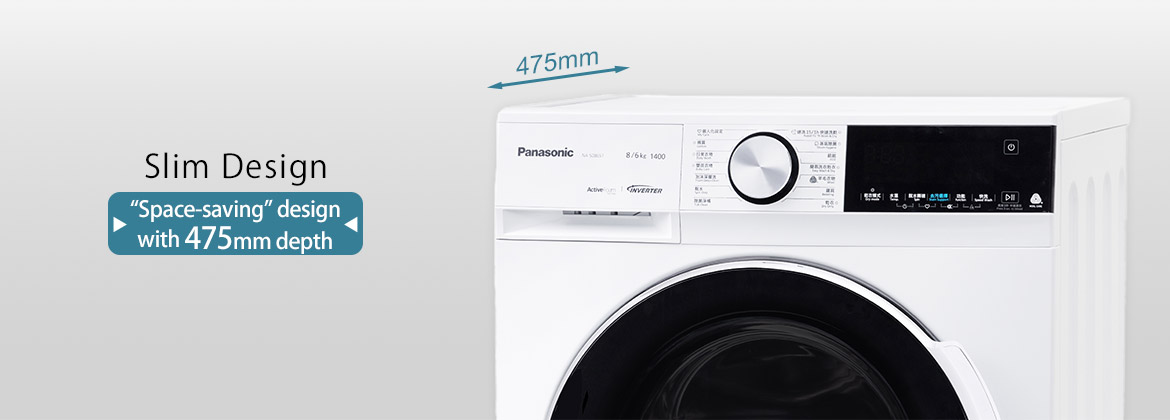

  • Slim ‘space-saving’ design with 475mm depth
  • New “Steam Hygiene” mode generates hot steam before washing and achieves 99.99% bacteria elimination*
  • New “Stain Support” mode provides intensive stain removal including (i) Food, (ii) Drinks, (iii) Sports & Fitness, (iv) Outdoor and Workers, and (v) Health & Beauty
  • 3-level dry modes (Gentle Dry/Normal Dry/Extra Dry) and adjustable dry time options (30∕60∕90∕120∕180min) for selected programmes
  • Inverter drive motor achieves quiet operation
  • New ActiveFoam System makes finer bubble which penetrates deep into fabrics and achieve superb wash results
  • 1 Hour wash & dry programme ^^
  • Wool program # certified by The Woolmark Company
  • Timer: 24 hours
  • Water temperature from cold water to 90℃
  • Child Lock Function
  • “Water cube” drum reduces damage to fabrics and residue of detergents
  • LED touch screen
  • Fully automatic washing machine with 14 programmes:
    (i) Cotton &, (ii) Daily Wash &, (iii) Baby Care &, (iv) Steam Hygiene &, (v) Easy Wash&Dry &, (vi) 1h Wash&Dry ^&, (vii) Rapid 15, (viii) ECO, (ix) Wool#, (x) Bedding, (xi) Foam Deep Clean, (xii) Spin Only, (xiii) Tub Clean, (xiv)Dry Only
  • Grade 1 Energy Efficiency Label
  • Grade 1 Water Efficiency Label
  • Colour: White
  • Equipped with a drain pump that allows the unit to discharge up to 1m from the unit’s location
  • Body Dimension: W595 x D475 x H850 mm
    (Depth including Door, Button and Water Supply/Drain Hose: 550mm)
  • Slim top plate model not available
  • 2-year warranty
  • Country of origin: China
  • Safety tips for washing machines:

    https://www.emsd.gov.hk/filemanager/en/content_442/Leaflet_WM.pdf

^ Free standard installation of front-loading washing machine:

1) Provide 1/2” dia. standard brass water piping with accessories to the location next to the washing machine (if required) (5 feet maximum)

2) Provide 32mm dia. PVC water piping with accessories and connection to the location next to the washing machine (if required)

3) Connect the machine’s power cord to the machine's power supply position (customer must provide a suitable electrical outlet)

4) Operation Demonstration

*Up to 2.4kg load

^^ Up to 1kg load

# Up to 2kg load

& Selection of dry level available

Generates hot steam to eliminate 99.99%* bacteria

New "Stain Support" mode provides intensive stain removal

Fine bubble penetrates deep into fabrics for superb wash results

Inverter drive motor achieves quiet operation


*Testing Organization: CVC Testing Technology Co. Ltd / * Testing condition: Program “Steam Hygiene“ (up to 2.4kg load) /

*Test subject: Staphylococcus aureus AS 1.89, Escherichia coli AS 1.90, Klebsiella pneumoniae ATCC 4352 and Pseudomonas aeruginosa ATCC 15442 /

*Test result: Eliminated more than 99.99% of bacteria from the laundry.

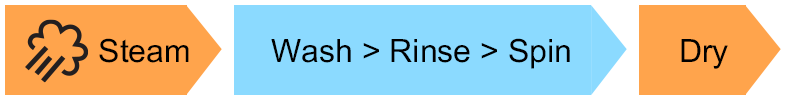

Steam Hygiene Program

New "Steam Hygiene" mode generates hot steam before washing and achieves 99.99%* bacteria elimination.


Snow

【Applicable Optional Functions】

  • Timer
  • Speed Wash
  • Prewash
  • Rinse+
  • My Cycle

*Testing Organization: CVC Testing Technology Co. Ltd / * Testing condition: Program “Steam Hygiene“ (up to 2.4kg load) /

*Test subject: Staphylococcus aureus AS 1.89, Escherichia coli AS 1.90, Klebsiella pneumoniae ATCC 4352 and Pseudomonas aeruginosa ATCC 15442 /

*Test result: Eliminated more than 99.99% of bacteria from the laundry.

Stain Support

Specific treatments to remove intense stains.


Food
(40℃)

Vegetables
Juice
Food sauce


Drinks
(60℃)

Red wine
Hot drink
Soft drink


Sports & Fitness*
(40℃)

Grass stains
Dust
Sweat stains


Outdoor & Workers
(60℃)

Grease
Mud stain
Carbon pigment


Health & Beauty*
(60℃)

Cosmetics
Blood
Drugs

* "Prewash" function works automatically. Detergent needs to be added to the compartment I

Snow

【Applicable Program】

  • Daily Wash
  • Baby Care
ActiveFoam System
Snow

New ActiveFoam System makes finer bubble which penetrates deep into fabrics and achieve superb wash results.

Wool Program
Snow

Certified by The Woolmark Company, wool program^ is specifically designed for machine-washable woollen clothes.



^Wool clothes are to be washed according to the instructions on the garment label and the washing machine's operation manual.

Drying Programs

3-level drying program according to needs. Adjustable drying time 30 / 60 / 90 / 120 / 180 min for designated wash & dry programs.

LED touch screen

Easy to control

"Water cube" Drum Design
Snow

Reducing damage to fabrics and residue of detergents

Other Product Features
Snow
  • 1 Hour wash & dry programme^
  • Fully automatic washing machine with 14 programmes
  • Timer: schedule your laundry 24 hours in advanced
  • Water temperature from cold water to 90℃
  • Child Lock Function
  • My Cycle: Memorize favourite settings


^Up to 1kg load, selection of dry level available

Specifications


Steam Hygiene 2-in-1 Washer Dryer (Washing capacity: 8kg, Drying capacity: 6kg)(Free standard installation)^
NA-S086S1
Living
Washing Machine
Series2 in 1 Washer Dryer
Washing Capacity (kg)8
Drying Capacity (kg)6
Dimension (W x D x H) mm595 x 475 x 850
Washing Program14
Water Temperature (°C)Cold / 20 / 30 / 40 / 60 / 90
Water Consumption (Normal Course) (L)38L
Spin Speed (with Clothes) (rpm)600-1,400
Tub MaterialStainless Steel
Auto Tub Cleaningv
Inverterv
Programmable Timerv
Child Lockv
LED Displayv
Drain Pumpv
Body ColorWhite
Air dry courseGentle Dry/Normal Dry/Extra Dry OR adjustable dry time options 30∕60∕90∕120∕180min
Eco/Speed Modev
Stain Solutionv

FAQ

Why is there water residue inside the detergent case?

During the washing cycle, water will be injected into the detergent case, washing the detergent/softener down into the drum. It is normal for some water residue left in the detergent case.

Why is the remaining washing time constantly changing?

The displayed remaining time is estimated and corrected continually. It is just for reference and subject to change.

During spin-dry, why does the drum stop and rotate several times?

The appliance has detected that the load is not balanced and is trying to re-distribute the clothes inside the drum to correct it. It is normal. If the laundry is too light, the spin process may repeatedly start and stop. Please add one to two bath towels to increase the load.

How to remove the odor inside the drum?

It is recommended to keep the door open after each use, so as to air-dry the remaining moisture insdie the drum. If odor is found continuously, it is suggested to run "Tub Clean" programme with drum cleaning detergent at least once a month for smell reduction.

Why are the buttons not working?

While washing is in progress or the child lock is activated, the settings cannot be changed. If it is necessary to change the settings, please turn off the appliance, wait for about 10 seconds and turn on the appliance again to re-select the programme.

What is the lifespan of Ag ion device? Do I need to replace it?

The “Blue Ag+” works for about three years if used twice a week with normal water conditions (water hardness, water amount and temperature). You can still use the washing machine after the Ag+ part’s service life, but no longer sterilising effect. Please contact our service centre for replacement.

Can I adjust the time of clothes drying programme for washer dryer?

The default programme time cannot be changed. However, there are 4 different drying levels for selection. Customers could choose based on the desired drying time.

If there is only a small amount of laundry, "1H Wash & Dry" programme is recommended (Laundry capacity: 1 kg).

Can I stop the machine operation and open the door during the clothes drying cycle for washer dryer?

When the washer is under drying mode, doors can only be opened after cooling down due to product safety design. If the issue persists, please contact our service centre for further assistance.
