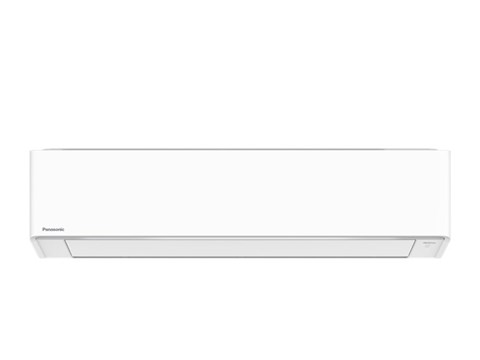

CS-YU18BKA

Inverter Split Type Cooling Only Air-Conditioner (2 HP)
Suggested Retail Price HK$11,800

Product | Accessories

Highlights

  • Product Specification
    • 2 HP (Cooling Model)
    • 18,100 Btu/h
    • Grade 1 Energy Label
  • Product Main Features and Advantages
    • PM2.5 filter
    • Wi-Fi function, supported with Panasonic Comfort Cloud App*(Installation of WiFi Adapter CZ-TACG1 is required)(Read More)
    • "Inverter" adjusts output power finely to maintain a constant temperature and conserve energy
    • BIG FLAP Wind Guide Design
    • Environmental Friendly R32 Refrigerant
    • Anti-Corrosive Blue Fin Condenser
  • Warranty
    • 1 year warranty: Entire unit
    • 5 years warranty: Compressor
    • Complimentary 1 year of Scaffolding Supporting Plan (Read More), starting from the purchase date of 1/7/2024 - 30/9/2025.

*Currently only available in Hong Kong

Scaffolding may be required, depending on the installation environment.

Features

Inverter Cooling Model

Wi-Fi Adapter is required to purchase and install separately
Learn More

Specifications


Inverter Split Type Cooling Only Air-Conditioner (2 HP)
CS-YU18BKA
Living
Air-Conditioner
Air-ConditionerCS-YU18BKA
OutdoorCU-YU18BKA
Inverter●
Remote Control●
Cooling Capacity
Btu/h18,100
kW5.3
EER
W/W3.81
Seasonal Performance Factor
Cooling Seasonal Performance Factor (CSPF)6.760
Power Supply
Voltage V220
Power Consumption A6.4
Input Power kW1.39
Power Plug3-round-pin 15A plug
Moisture Removal
L/h2.9
Air Circulation(Indoor / Hi)
m³/min.19.3
ft³/min.680
Indoor Unit Dimension(H x W x D)
mm295 x 1060 x 249
Outdoor Unit Dimension(H x W x D)
mm619 x 824 x 299
Net Weight
Indoor Unit13 kg
Outdoor31 kg
Piping Diameter
Liquid mm / inchψ6.35 / 1/4"
Gas mm / inchψ12.70 / 1/2"
Power SupplyIndoor
Pipe Length Range
m3-30
ft9.8-98.4

FAQ

Why does water seepage occur in the indoor unit of a split-type air-conditioner?

Answer 1:

It could be due to the absence of horizontal tests before the installation of the air-conditioner or the negligence of the water level difference, which hinders the removal of condensed water, during installation.

Advice:

Please ensure the indoor unit is horizontally installed with a level staff. If not, you are advised to call a qualified installer for reinstallation or readjustment of the water level difference at the drain.

Answer 2:

Dust accumulates in the indoor unit naturally over time and may mix with condensed water, possibly silting up the drain. The blockage would hinder the removal of condensed water, causing water seepage.

Advice:

Please call professionals to clean the indoor unit regularly to ensure smooth removal of condensed water.

What is the squeaking sound when the indoor unit is running?

Answer:

It is caused by the expansion or contraction due to temperature changes.

Downloads

Product Catalogue - 2025 Panasonic Split Air-Conditioner Catalogue Product Catalogue - 2025 Air Cond Function Comparison TableUser Manual - Operating InstructionsReference - Safety Tips for Air-conditionersReference - DimensionInstallation Guide - Installation Guide
